Product name |

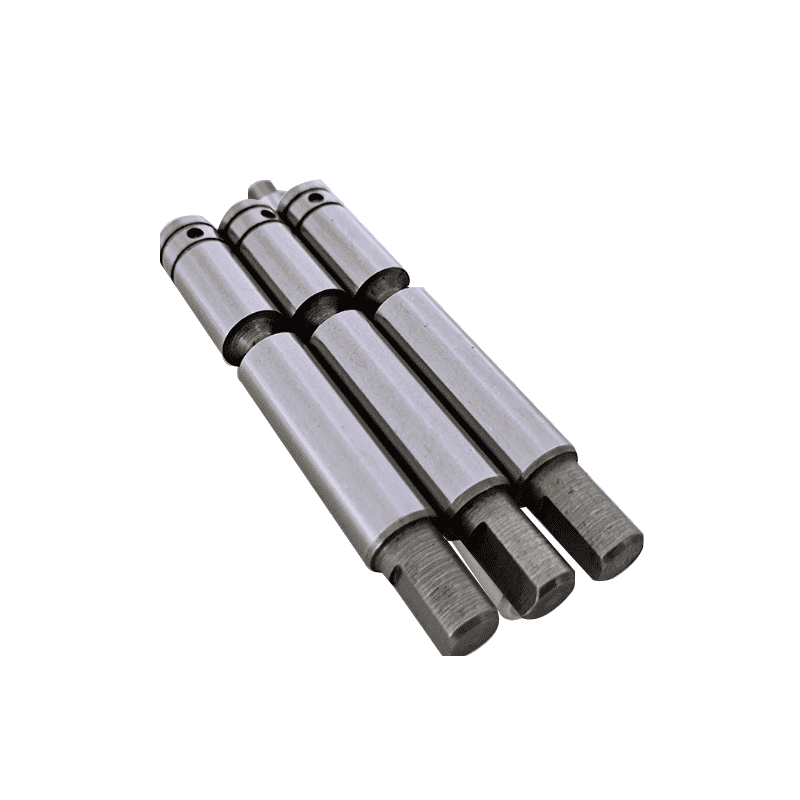

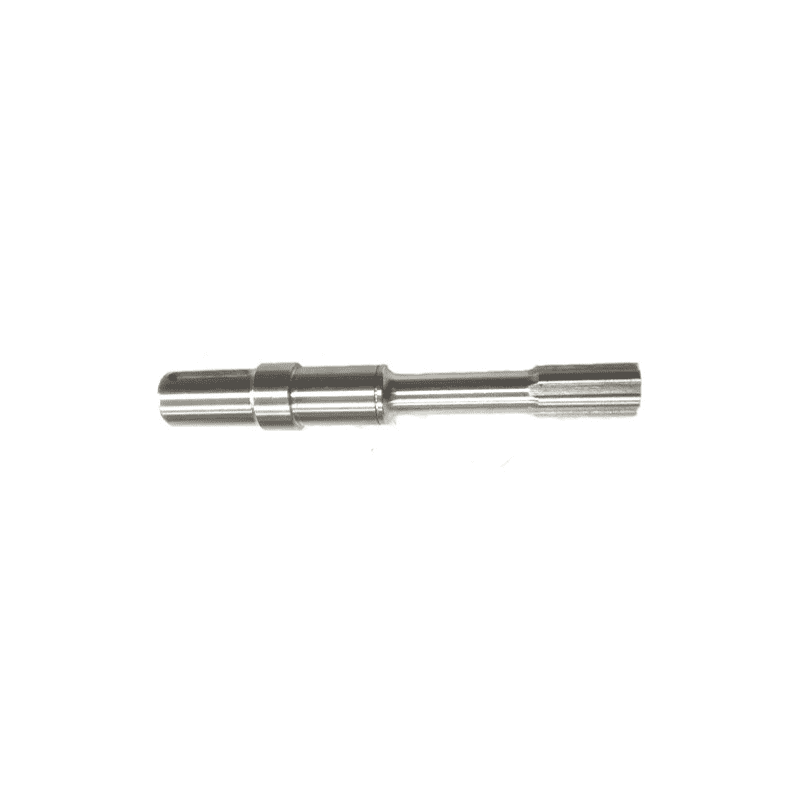

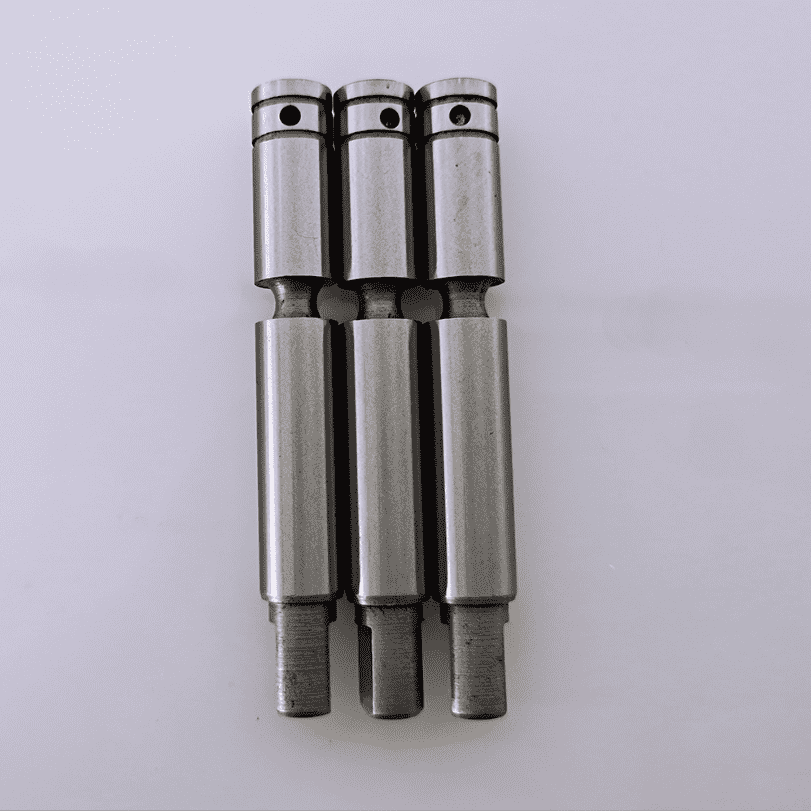

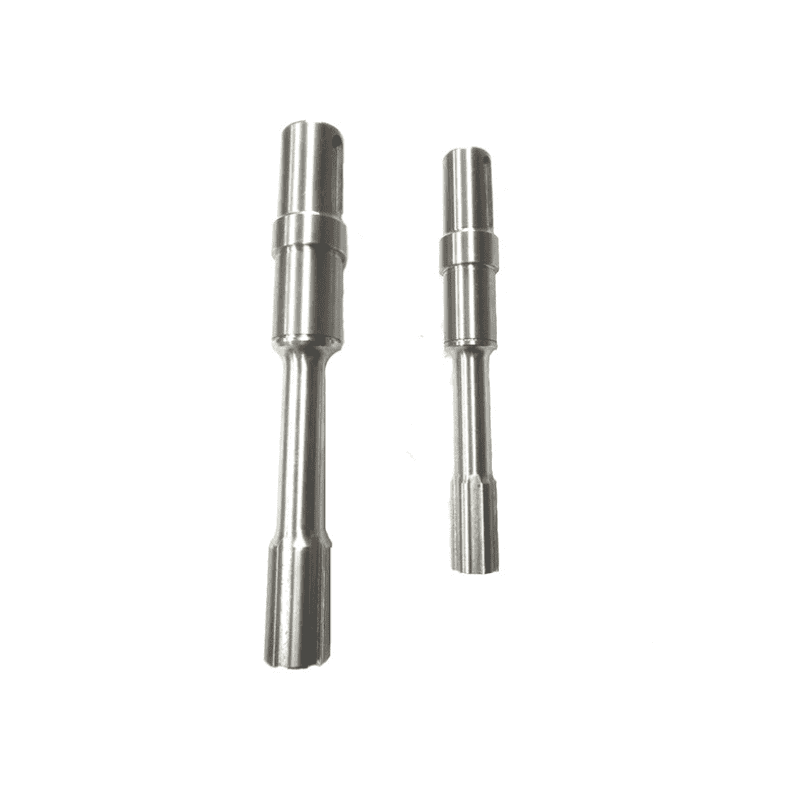

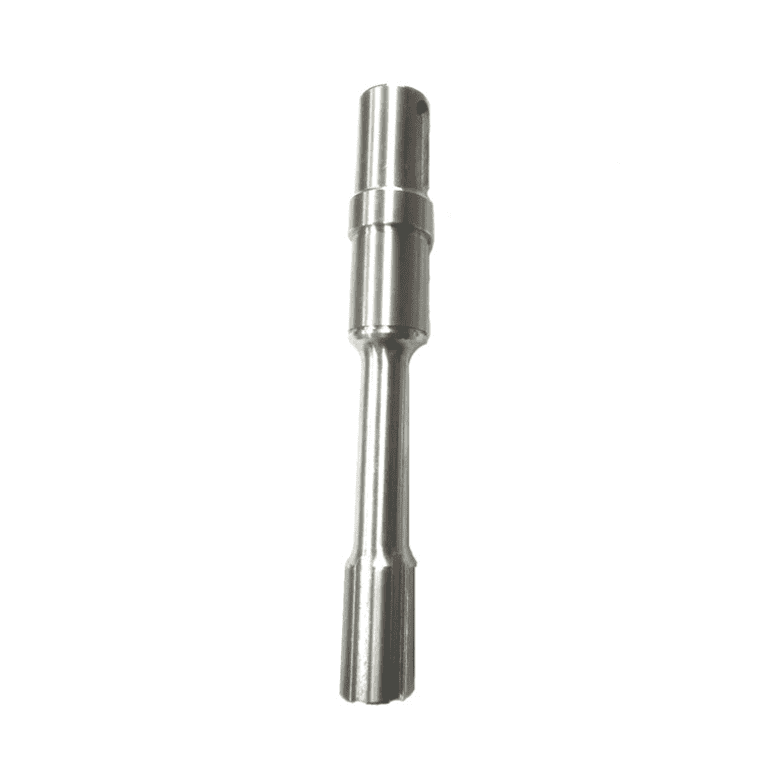

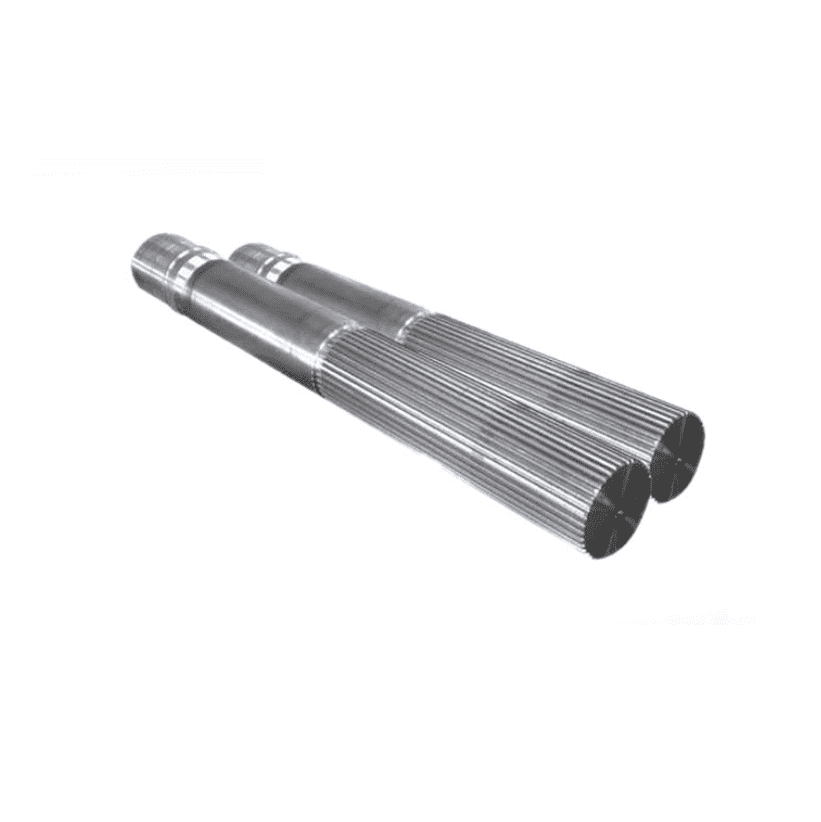

Spline gear |
|
Material |
C45,40Cr,20CrMnTi,42CrMo,Copper,Stainless steel and so on as per your requests. |
|
Processing |
Forging,Machining,Hobbing,Milling,Shaving, Grinding,Heat treatment…… |
|
Heat Treatment |
Carburizing,Induction,Flame,Nitriding…… |
|
Main Machines |
Gear Hobbing Machines,Gear Shapers(Gealson,Moude), lathe, gear Shaving machines, gear millling, gear grinding Machines and CNC centers…. |
|
Why choose us |
•100% manufacturer
• Rich production experience •Advanced GEAR Machine •Strict Quality Control System •Flexible MOQ •Punctual delivery •Excellent and Experienced Team |
Regular Materials And Heat Treatment
|
Regular Materials and Heat Treatment |
|||||
|
GB/JB |
DIN |
JIS |
SAE/AISI |
Case Hardening |
Case Hardness |
|
40CrNiMo |
34CrNiMo6 |
SNCM439 |
4340 |
Nitriding |
46-50HRC |
|
20CrMo |
20CrMo44 |
SCT42 |
4119/4118 |
Carburizing |
42-45HRC or 55-60HRC |
|
20CrNiMo |
— |
SNCCM220 |
8620 |
Carburizing |
55-60 HRC or 58-62 HRC |
|
20CrMnTi |
— |
— |
— |
Carburizing |
55-60 HRC |
Heat Treatment Cycle: Carburizing /Nitriding → Normalize → Quench → Clean → Temper → Shot Blast
|
Precision Grade , Process Methods and Application Standard : GB 10095-88,DIN 3961-78;ISO 1328-75/GB 10095-88;JIS 1702-74; AGMA 39003-71 |
|||||
| Precision grade |
Grade 5 |
Grade 6 |
Grade 7 |
Grade 8 |
Grade 9/10 |
| Module range | Gleason M10∼M40 | Spur/helical M3∼M40 |
Spur/helical M3∼M40 |
Spur/helical M3∼M40 |
Spur/helical M3∼M40 |
| Outside Dia(max) |
φ1500mm |
Φ2000mm |
Φ2000mm |
Φ3000mm |
Φ3000mm |
| Final Process |
fine grinding |
fine grinding or shaving |
grinding, shaving , lapping |
shaving |
— |
| Teeth Surface Roughness |
Ra 0.8 μm |
Ra 0.8 μm |
Ra 1.6 μm |
Ra 1.6-3.2 μm |
Ra 3.2-6.3 μm |
| Application |
Measuring gear |
locomotive |
craneforging machinetractors,trucks
universal reducer |
crane farm machinery forging machine tractors,trucks universal reducer |
crane farm machinery forging machine mine machinery tractors |
| Why Choose US | •100% manufacturer |
•Rich production experience |
•Advanced GEAR Machine |
•Strict Quality Control System
|
•Flexible MOQ •Fast delivery
|
Packing:
|
Carton Size |
29*20*13 CM or customer’s request |
|
Pallet size |
120*80*80 CM or customer’s request |
|
Lead time |
3-7 working days as usual.It will based on the detailed order quantity. |
|
Packing Details |
Method 1: Shrink film, then bulk loading |
|
Method 2: Shrink film + box + pallet/ wooden case |
|
|
Method 3: PP + wooden case |
|
|
Method 4: As per customers’ requirements or negotiated |
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
